These are the docs for the Metabase master branch. Some features documented here may not yet be available in the latest release. Check out the docs for the latest version, Metabase v0.54.
Embedded analytics SDK - questions
Embedded analytics SDK is only available on Pro and Enterprise plans (both self-hosted and on Metabase Cloud). You can, however, play around with the SDK on your local machine without a license by using API keys to authenticate your embeds.
There are different ways you can embed questions:
- Static question. Embeds a chart. Clicking on the chart doesn’t do anything.
- Interactive question. Clicking on the chart gives you the drill-through menu.
- Query builder. Embeds the graphical query builder without a pre-defined query.
Embedding a question
You can embed a question using the one of the question components:

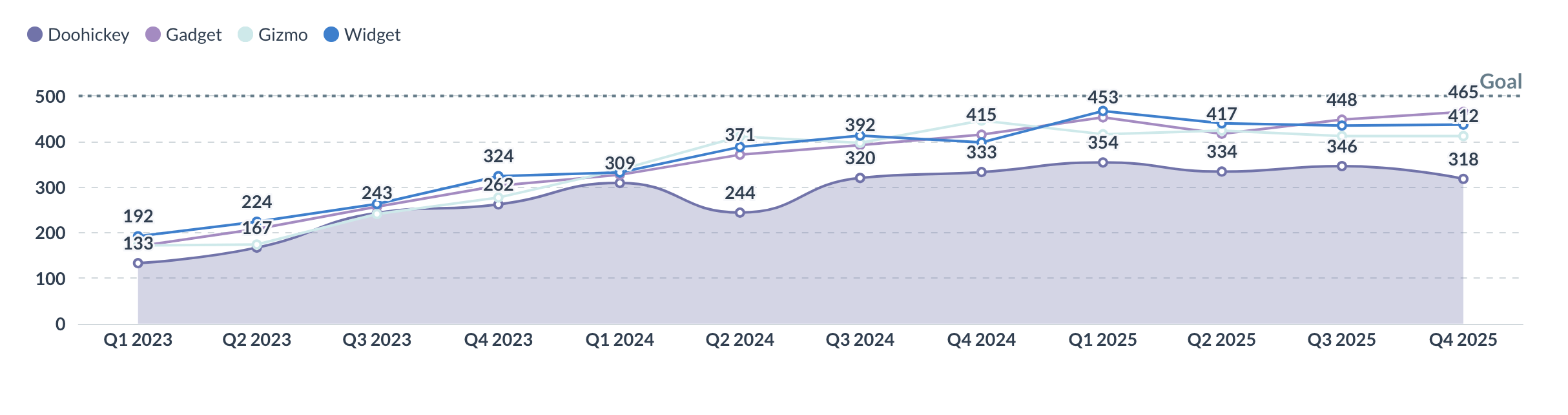

StaticQuestion
A lightweight question component. Use this component when you want to display results without letting people interact with the data.
The component has a default height, which can be customized by using the height
prop. To inherit the height from the parent container, you can pass 100%
to the height prop.
API Reference
Example
import React from "react";
import {
MetabaseProvider,
StaticQuestion,
defineMetabaseAuthConfig,
} from "@metabase/embedding-sdk-react";
const authConfig = defineMetabaseAuthConfig({
metabaseInstanceUrl: "https://your-metabase.example.com",
authProviderUri: "https://your-app.example.com/sso/metabase",
});
export default function App() {
const questionId = 1; // This is the question ID you want to embed
return (
<MetabaseProvider authConfig={authConfig}>
<StaticQuestion questionId={questionId} withChartTypeSelector={false} />
</MetabaseProvider>
);
}
Props
Property | Type | Description |
---|---|---|
className? |
string |
A custom class name to be added to the root element. |
height? |
Height <string | number > |
A number or string specifying a CSS size value that specifies the height of the component |
initialSqlParameters? |
SqlParameterValues |
Initial values for the SQL parameters. |
questionId |
null | SdkQuestionId |
The ID of the question. This is either: - The numerical ID when accessing a question link, e.g., http://localhost:3000/question/1-my-question where the ID is 1 - The entity_id key of the question object. You can find a question’s Entity ID in the info panel when viewing a question - new to show the notebook editor for creating new questions. isSaveEnabled must be true to allow saving the question |
style? |
CSSProperties |
A custom style object to be added to the root element. |
width? |
Width <string | number > |
A number or string specifying a CSS size value that specifies the width of the component |
withChartTypeSelector? |
boolean |
- |

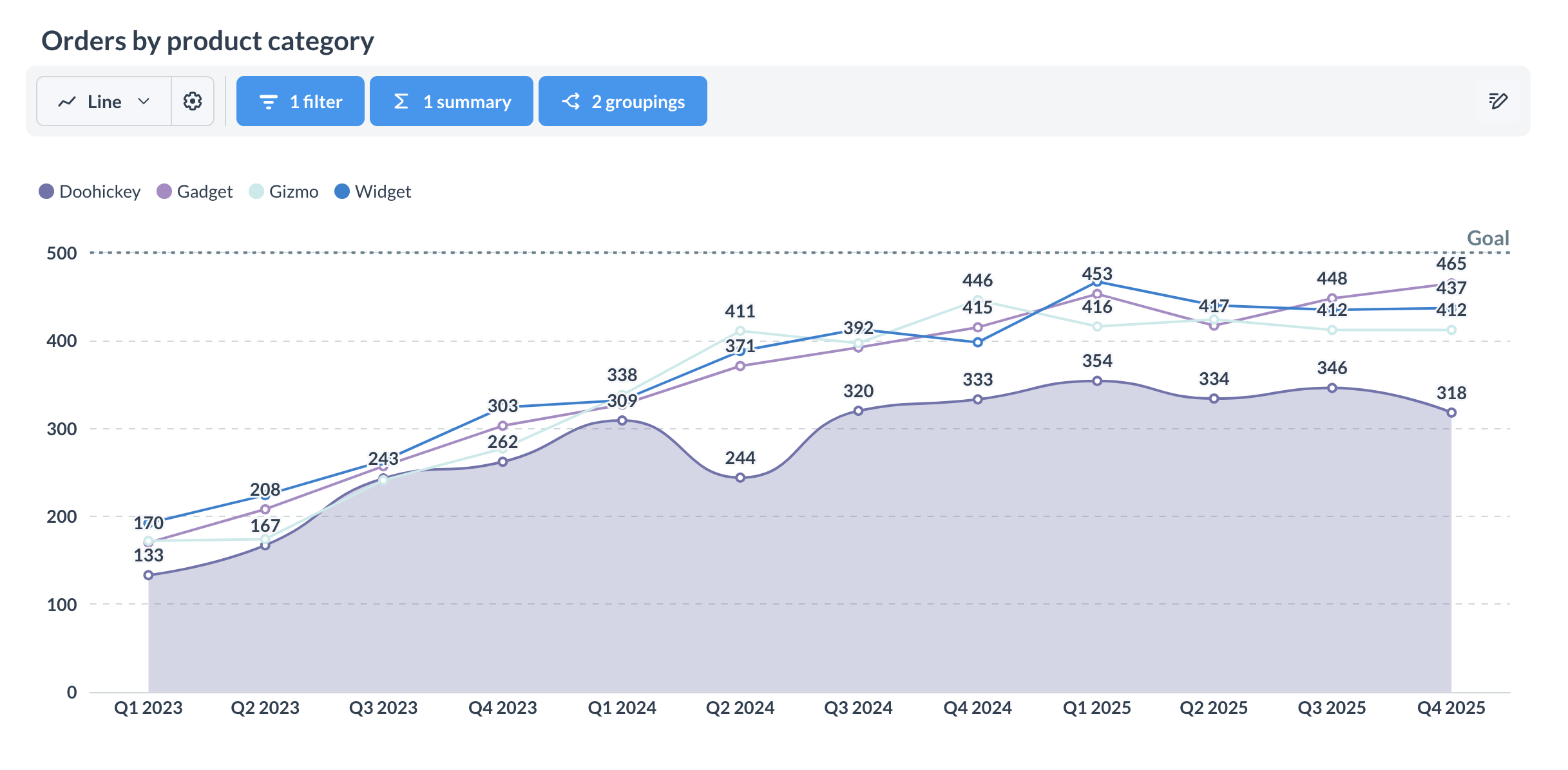

InteractiveQuestion
Use this component when you want to allow people to explore their data and customize question layout.
API Reference
Example
import React from "react";
import {
InteractiveQuestion,
MetabaseProvider,
defineMetabaseAuthConfig,
} from "@metabase/embedding-sdk-react";
const authConfig = defineMetabaseAuthConfig({
metabaseInstanceUrl: "https://your-metabase.example.com",
authProviderUri: "https://your-app.example.com/sso/metabase",
});
export default function App() {
const questionId = 1; // This is the question ID you want to embed
return (
<MetabaseProvider authConfig={authConfig}>
<InteractiveQuestion questionId={questionId} />
</MetabaseProvider>
);
}
Props
Property | Type | Description |
---|---|---|
children? |
ReactNode |
The children of the MetabaseProvider component.s |
className? |
string |
A custom class name to be added to the root element. |
entityTypeFilter? |
EntityTypeFilterKeys [] |
An array that specifies which entity types are available in the data picker |
height? |
Height <string | number > |
A number or string specifying a CSS size value that specifies the height of the component |
initialSqlParameters? |
SqlParameterValues |
Initial values for the SQL parameters. |
isSaveEnabled? |
boolean |
Whether to show the save button. |
onBeforeSave? |
(question : undefined | MetabaseQuestion , context : { isNewQuestion : boolean ; }) => Promise <void > |
A callback function that triggers before saving. Only relevant when isSaveEnabled = true |
onSave? |
(question : undefined | MetabaseQuestion , context : { isNewQuestion : boolean ; }) => void |
A callback function that triggers when a user saves the question. Only relevant when isSaveEnabled = true |
plugins? |
MetabasePluginsConfig |
- |
questionId |
null | SdkQuestionId |
The ID of the question. This is either: - The numerical ID when accessing a question link, e.g., http://localhost:3000/question/1-my-question where the ID is 1 - The entity_id key of the question object. You can find a question’s Entity ID in the info panel when viewing a question - new to show the notebook editor for creating new questions. isSaveEnabled must be true to allow saving the question |
style? |
CSSProperties |
A custom style object to be added to the root element. |
targetCollection? |
SdkCollectionId |
The collection to save the question to. This will hide the collection picker from the save modal. Only applicable to interactive questions. |
title? |
SdkQuestionTitleProps |
Determines whether the question title is displayed, and allows a custom title to be displayed instead of the default question title. Shown by default. Only applicable to interactive questions when using the default layout. |
width? |
Width <string | number > |
A number or string specifying a CSS size value that specifies the width of the component |
withChartTypeSelector? |
boolean |
Determines whether the chart type selector and corresponding settings button are shown. Only relevant when using the default layout. |
withDownloads? |
boolean |
Enables the ability to download results in the interactive question. |
withResetButton? |
boolean |
Determines whether a reset button is displayed. Only relevant when using the default layout. |
Pass SQL parameters to SQL questions with initialSqlParameters
You can pass parameter values to questions defined with SQL via the initialSqlParameters
prop, in the format of {parameter_name: parameter_value}
. Learn more about SQL parameters.
<StaticQuestion
questionId={questionId}
initialSqlParameters={{ product_id: 50 }}
/>
initialSqlParameters
can’t be used with questions built using the query builder.
Customizing interactive questions
By default, the Embedded analytics SDK provides a default layout for interactive questions that allows you to view your questions, apply filters and aggregations, and access functionality within the query builder.
Here’s an example of using the InteractiveQuestion
component with its default layout:
<InteractiveQuestion questionId={95} />
To customize the layout, use namespaced components within the InteractiveQuestion
component. For example:
<div
className="App"
style={{
width: "100%",
maxWidth: "1600px",
height: "800px",
margin: "0 auto",
}}
>
<MetabaseProvider authConfig={authConfig} theme={theme}>
<InteractiveQuestion questionId={95}>
<div
style={{
display: "flex",
flexDirection: "column",
alignItems: "center",
justifyContent: "center",
width: "100%",
}}
>
<div style={{ display: "grid", placeItems: "center", width: "100%" }}>
<InteractiveQuestion.Title />
<InteractiveQuestion.ResetButton />
</div>
<div
style={{
display: "flex",
alignItems: "center",
justifyContent: "flex-start",
overflow: "hidden",
width: "100%",
}}
>
<div style={{ width: "100%" }}>
<InteractiveQuestion.QuestionVisualization />
</div>
<div style={{ display: "flex", flex: 1, overflow: "scroll" }}>
<InteractiveQuestion.Summarize />
</div>
</div>
<div
style={{ display: "flex", flexDirection: "column", width: "100%" }}
>
<InteractiveQuestion.Filter />
</div>
</div>
</InteractiveQuestion>
</MetabaseProvider>
</div>
Interactive question components
These components are available via the InteractiveQuestion
namespace (e.g., <InteractiveQuestion.Filter />
).
API Reference:
- InteractiveQuestion.BackButton
- InteractiveQuestion.Breakout
- InteractiveQuestion.BreakoutDropdown
- InteractiveQuestion.ChartTypeDropdown
- InteractiveQuestion.ChartTypeSelector
- InteractiveQuestion.Editor
- InteractiveQuestion.EditorButton
- InteractiveQuestion.Filter
- InteractiveQuestion.FilterDropdown
- InteractiveQuestion.QuestionSettings
- InteractiveQuestion.QuestionSettingsDropdown
- InteractiveQuestion.QuestionVisualization
- InteractiveQuestion.ResetButton
- InteractiveQuestion.SaveButton
- InteractiveQuestion.SaveQuestionForm
- InteractiveQuestion.Summarize
- InteractiveQuestion.SummarizeDropdown
- InteractiveQuestion.DownloadWidget
- InteractiveQuestion.DownloadWidgetDropdown
- InteractiveQuestion.Title
Interactive question plugins
You can use plugins to add custom functionality to your questions.
mapQuestionClickActions
This plugin allows you to add custom actions to the click-through menu of an interactive question. You can add and customize the appearance and behavior of the custom actions.
// You can provide a custom action with your own `onClick` logic.
const createCustomAction = clicked => ({
buttonType: "horizontal",
name: "client-custom-action",
section: "custom",
type: "custom",
icon: "chevronright",
title: "Hello from the click app!!!",
onClick: ({ closePopover }) => {
alert(`Clicked ${clicked.column?.name}: ${clicked.value}`);
closePopover();
},
});
// Or customize the appearance of the custom action to suit your need.
const createCustomActionWithView = clicked => ({
name: "client-custom-action-2",
section: "custom",
type: "custom",
view: ({ closePopover }) => (
<button
className="tw-text-base tw-text-yellow-900 tw-bg-slate-400 tw-rounded-lg"
onClick={() => {
alert(`Clicked ${clicked.column?.name}: ${clicked.value}`);
closePopover();
}}
>
Custom element
</button>
),
});
const plugins = {
/**
* You will have access to default `clickActions` that Metabase renders by default.
* So you could decide if you want to add custom actions, remove certain actions, etc.
*/
mapQuestionClickActions: (clickActions, clicked) => {
return [
...clickActions,
createCustomAction(clicked),
createCustomActionWithView(clicked),
];
},
};
const questionId = 1; // This is the question ID you want to embed
return (
<MetabaseProvider authConfig={authConfig} pluginsConfig={plugins}>
<InteractiveQuestion questionId={questionId} />
</MetabaseProvider>
);
Prevent people from saving changes to an InteractiveQuestion
To prevent people from saving changes to an interactive question, or from saving changes as a new question, you can set isSaveEnabled={false}
:
import React from "react";
import {
InteractiveQuestion,
MetabaseProvider,
defineMetabaseAuthConfig,
} from "@metabase/embedding-sdk-react";
const authConfig = defineMetabaseAuthConfig({
metabaseInstanceUrl: "https://your-metabase.example.com",
authProviderUri: "https://your-app.example.com/sso/metabase",
});
export default function App() {
return (
<MetabaseProvider authConfig={authConfig}>
<InteractiveQuestion questionId={1} isSaveEnabled={false} />
</MetabaseProvider>
);
}

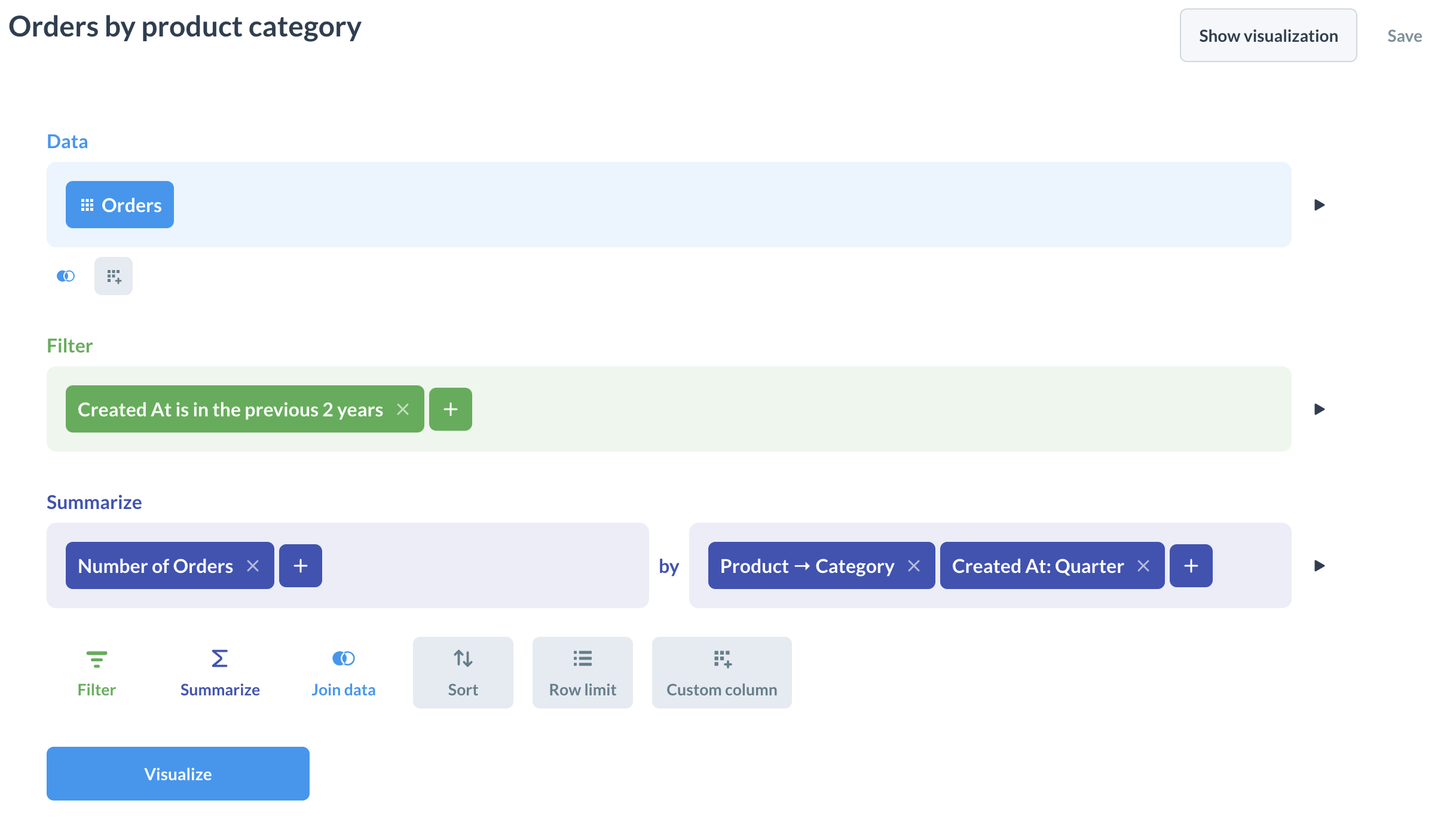

Embedding the query builder for creating new questions
You can embed the query builder for creating new questions by passing the questionId="new"
prop to the InteractiveQuestion
component. You can use the children
prop to customize the layout for creating new questions.
import React from "react";
import {
InteractiveQuestion,
MetabaseProvider,
defineMetabaseAuthConfig,
} from "@metabase/embedding-sdk-react";
const authConfig = defineMetabaseAuthConfig({
metabaseInstanceUrl: "https://your-metabase.example.com",
authProviderUri: "https://your-app.example.com/sso/metabase",
});
export default function App() {
return (
<MetabaseProvider authConfig={authConfig}>
<InteractiveQuestion questionId="new" />
</MetabaseProvider>
);
}
To customize the question editor’s layout, use the InteractiveQuestion
component directly with a custom children
prop.
